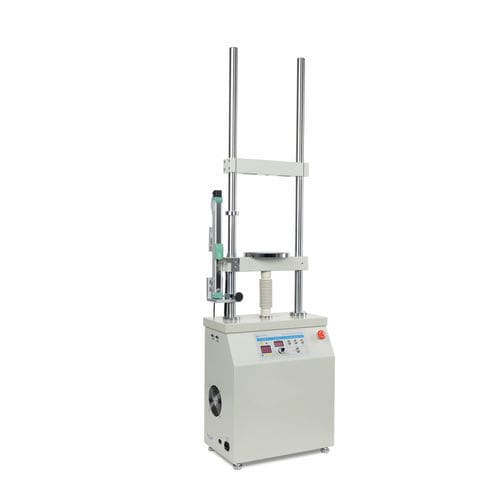

Electric test station TVS 50KN80-LD

automaticfor the automotive industryfor laboratories

Description • - Five in one – premium motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting • - With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 210 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed • - Motorised test stand for tension/compression force measurements • - Stepper motor for greatest ease of use - for constant speed from the smallest to the maximum load - allows testing at minimum speed and full load - for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds - precise adjustment of the displacement speed using the information shown on the display • - Maximum displacement protected by electronic end switches • - Large working area by means of long guide columns as standard, which allows a wide range of fixing options • - Particularly flexible mounting options for variable force measuring devices, such as, for example, SAUTER FC, FH, FK, FL: - Direct mounting of the external load cell on the traverse, starting with 1000 N measurement range and higher - Holder for force measuring devices of the SAUTER FH range with external load cell (see accessories)
