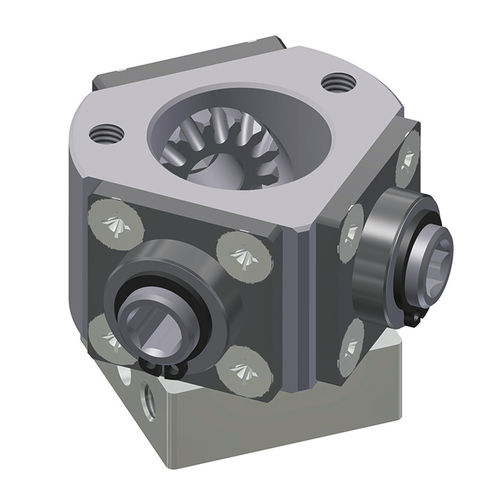

Bevel angle gearbox 3014 series
hollow-shaft90°steel

bevel angle gearbox
bevel angle gearbox
bevel angle gearbox
Add to favorites
Compare this product


Characteristics

Technology
bevel
Configuration
hollow-shaft, 90°
Material
steel

Description

Deflection gear unit 3014 Bevel gear family for use as a deflection gear in up to three directions. Deflection of rotational movement possible at angles of 90°, 120°, 135°. Upon request the number of drive wheels can be varied. Simple screw mounting on the adaptor facilitates uncomplicated assembly. Special features Maintenance-free Case hardened steel bevel wheels Housing made of reinforced glass-fibre or aluminium at an angle of 90°/120°/135° Downward ratio 1.3:1, ratio in direction of deflection 1:1 Designed for the manual operation
