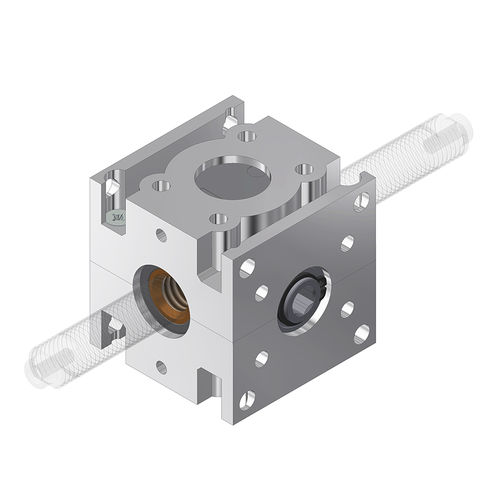

Bevel gear with throughgoing spindle
3900 | 3901
Bevel gear for continuous non-rotating spindles, for thrust and pull movements. The gear is particularly suitable for use as a lifting system for skylights, winter gardens and greenhouses as well as for special machine engineering. A special bevel gearing ensures quiet operation of the gear. The gear can be supplied with different thread types. Spindles can be custom manufactured to customer specifications.
Special features
Maintenance-free
Case-hardened bevel wheels
Housing made of zinc die-casting
Ratio 1,44:1 or 1,5:1
Designed for electromotive drive, but also ideal for manual driv
Technical notes
Attention: Spindle is not in scope of delivery, can be produced to customer requirements
The drive side can be selected as required
Depending of the spindle pitch the self-locking of the system must be checked
