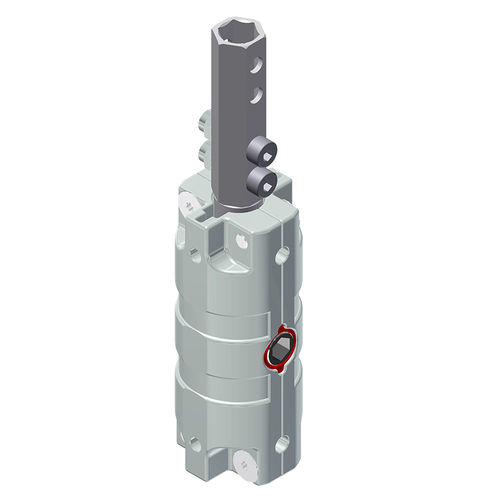

Bevel gear reducer 3057.00-0010

right angle1 - 5 Nmcompact

Bevel gear 3057 Compact bevel gearbox for the deflection of a rotary movement at an angle of 90°. Ideally suited for the adjustment of large parasols. Special bevel gear toothing ensures smooth running of the gearbox. Drive and output can be modifi ed for custom applications. The gearbox can be combined with any spindle. Special features Maintenance-free Case-hardened bevel wheels Housing made of zinc die-casting Ratio 1 : 2 Designed for the manual operation Technical notes Attention: Spindle is not in scope of delivery, can be produced to customer requirements Depending of the spindle pitch the self-locking of the system must be checked
