Bevel gear reducer 3039 series
right angle1 - 5 Nmfor height adjustment

Bevel gear reducer - 3039 series - Ketterer - right angle / 1 - 5 Nm / for height adjustment
Bevel gear reducer - 3039 series - Ketterer - right angle / 1 - 5 Nm / for height adjustment
Add to favorites
Compare this product


Characteristics

Type
bevel
Shaft orientation
right angle
Torque
1 - 5 Nm
Applications
for height adjustment

Description

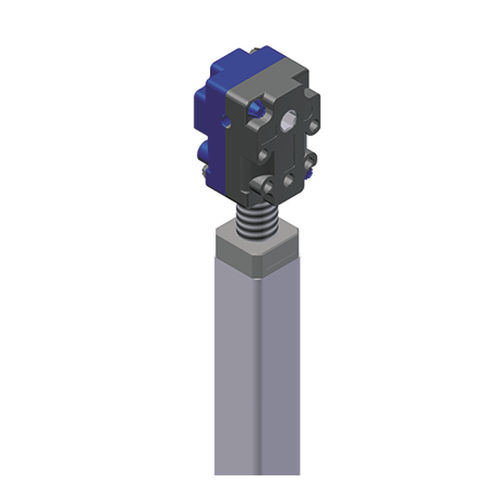

Bevel gear with spindle unit 3039 Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields. A simple screw fastening and a hexagonal bolt enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Ratio 1:1 Max. drive torque on gear head depending on spindle pitch: max. 4 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Suitable for manual use as well as for electromotive drives Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions Installation instructions: Use at least 2 M4 screws when fastening using upper boreholes ø 4.1 (4x). When doing so, preferably the lifting unit should be supported above on the top side. Connection by means of additional mouinting holes ø 4.6 mm for M5 requires top side support.
