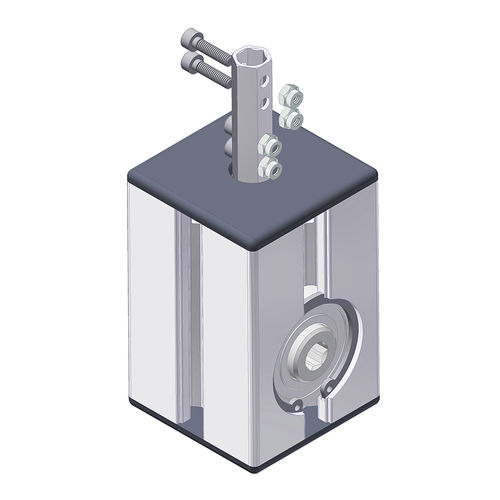

Bevel gear 3875
Bevel gearbox for the deflection of a rotary movement at an angle of 90°. Ideally suited for the adjustment of large parasols. Special bevel gear toothing ensures smooth running of the gearbox. Drive and output can be modified for custom applications. The gearbox can be combined with any spindle.
Special features
Maintenance-free
Case-hardened bevel wheels
Housing made of aluminium profile
Construction size 60 x 60 mm
Ratio 1:1.5
Max. drive torque 8 Nm
Designed for the manual operation
Technical notes
Depending of the spindle pitch the self-locking of the system must be checked
