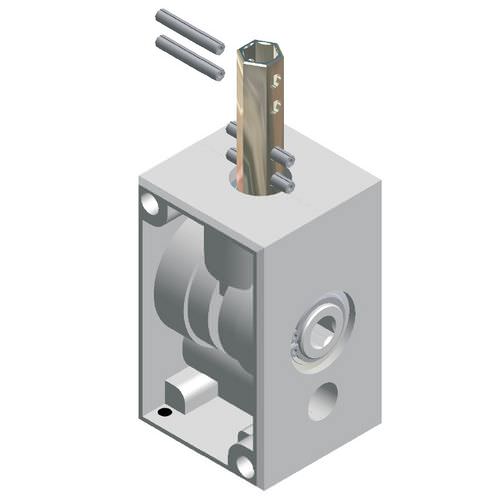

Bevel gear reducer 3874
right angle1 - 5 Nmfor large sun shades

bevel gear reducer
bevel gear reducer
Add to favorites
Compare this product


Characteristics

Type
bevel
Shaft orientation
right angle
Torque
1 - 5 Nm
Applications
for large sun shades

Description

Bevel gear 3874 Compact bevel gearbox for the deflection of a rotary movement at an angle of 90°. Ideally suited for the adjustment of large parasols. Special bevel gear toothing ensures smooth running of the gearbox. Drive and output can be modified for custom applications. The gearbox can be combined with any spindle. Special features Maintenance-free Case-hardened bevel wheels Housing made of zinc die-casting Construction size 50 x 50 x 84 mm Ratio 1:1.5 Max. output torque 4 Nm Designed for the manual operation Technical notes Attention: Spindle is not in scope of delivery, can be produced to customer requirements Depending of the spindle pitch the self-locking of the system must be checked
