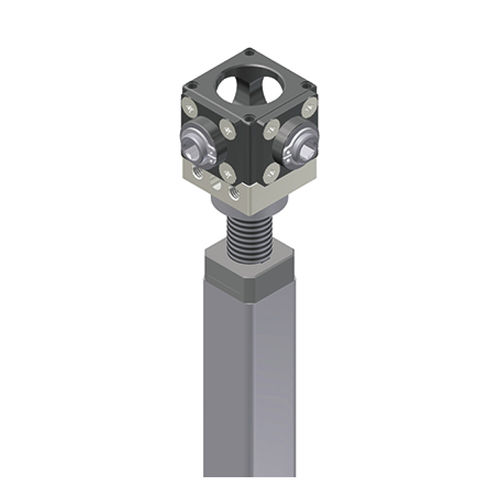

Bevel gear reducer 3010, 3011

right angle1 - 5 Nmfor workstation height adjustment

Bevel gear with spindle unit 3010 | 3011 Universally applicable lifting unit with bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential and office fields. Simple screw fastenings enable a simple system structure and an uncomplicated assembly. Special features Maintenance-free Ratio in direction of spindle 1.3:1 Drive torque on gear head for application with several spindle units: max. 3 Nm Housing made of glass fiber reinforced plastic Hardened steel bevel wheels with robust, reinforced toothing Designed for the manual operation Variable number of bevel gears for deflection of movement and freely selectable drive position Upon request other spindle types can be supplied Variant key 3010: variants with right rotating spindles 3011: variants with left rotating spindles Technical notes The lifting units must be protected against lateral forces by a separate guide system. Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application. The lifting unit is only pressure loadable. If several lifting units are being used simultaneously in the application, note the max. drive torque on gear head of 3 Nm! Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions
