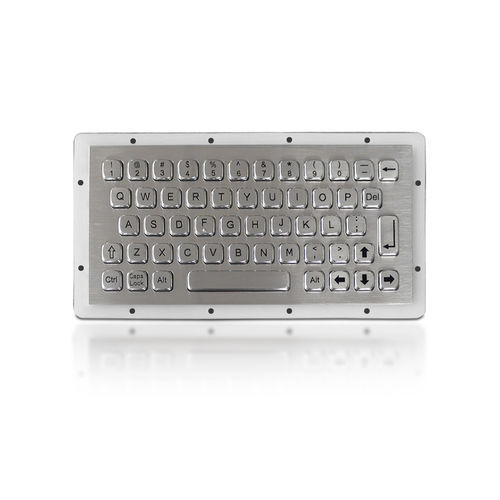

Panel-mount keyboard K-TEK-A224-UT-DWP
53-keyscontrol panelindustrial

Panel-mount keyboard - K-TEK-A224-UT-DWP - Key Technology (China) Limited - 53-keys / control panel / industrial
Panel-mount keyboard - K-TEK-A224-UT-DWP - Key Technology (China) Limited - 53-keys / control panel / industrial
Panel-mount keyboard - K-TEK-A224-UT-DWP - Key Technology (China) Limited - 53-keys / control panel / industrial - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
53-keys
Domain
control panel, industrial, outdoor, for public access kiosks and internet terminals, for clean rooms, for machine tools, for the automotive industry, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Structure
ultra-slim
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, IK 08, IP65

Description

53 keys ultra thin IP65 dynamic water proof rated vandal proof stainless steel industrial keyboard with industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy sealing and tightening with cabinet or panel, rear panel mounting. FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC,Industrial backlight optional (Red/blue/white/green optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 224.0mm x 110.0mm (front panel) h. Working Temperature: -20℃ to +65℃ Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Exhibitions

Meet this supplier at the following exhibition(s):

embedded world 2025

11-13 Mar 2025 Nürnberg (Germany) Hall 3 - Stand 627

  • More information
    Computex 2025

    20-23 May 2025 Taipei (Taiwan Region)

  • More information

    Other Key Technology (China) Limited products

    Waterproof Metal Keyboard
