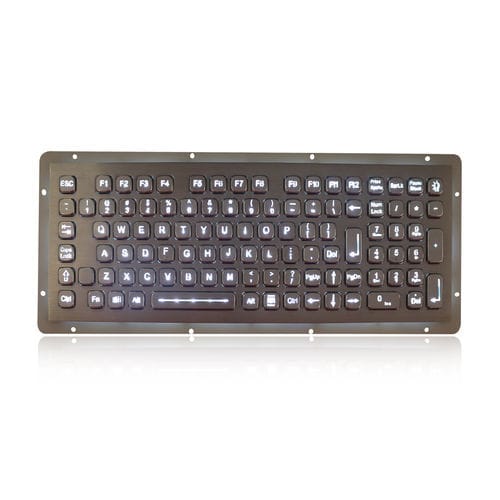

Panel-mount keyboard K-TEK-A340KP-FN-BL-DWP
with Fn key102-keyindustrial

Panel-mount keyboard - K-TEK-A340KP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / 102-key / industrial
Panel-mount keyboard - K-TEK-A340KP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / 102-key / industrial
Panel-mount keyboard - K-TEK-A340KP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / 102-key / industrial - image - 2
Panel-mount keyboard - K-TEK-A340KP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / 102-key / industrial - image - 3
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, 102-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, information, for self-service information kiosk, for mining applications
Connection type
USB, PS2
Material
stainless steel
Protection level
waterproof, vandal-proof, harsh environments, robust, IK 08, IP65, rugged
Other characteristics
compact, long-travel, backlit

Description

102 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon on gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 1.50mm stainless steel back plate with watertight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Stainless steel keycaps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included (Blue, White for optional). Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel industrial keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 340.0mm x 125.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Backlight: White Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
