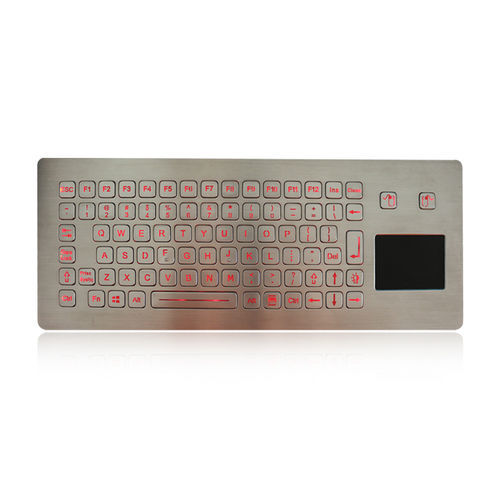

Panel-mount keyboard K-TEK-B361TP-FN-BL-DWP
with 2 mouse keys86-keyindustrial

Panel-mount keyboard - K-TEK-B361TP-FN-BL-DWP - Key Technology (China) Limited - with 2 mouse keys / 86-key / industrial
Panel-mount keyboard - K-TEK-B361TP-FN-BL-DWP - Key Technology (China) Limited - with 2 mouse keys / 86-key / industrial
Panel-mount keyboard - K-TEK-B361TP-FN-BL-DWP - Key Technology (China) Limited - with 2 mouse keys / 86-key / industrial - image - 2
Panel-mount keyboard - K-TEK-B361TP-FN-BL-DWP - Key Technology (China) Limited - with 2 mouse keys / 86-key / industrial - image - 3
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with 2 mouse keys, 86-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, for clean rooms, control panel, information, for self-service information kiosk, for mining applications, for the transportation industry, for marine applications
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
waterproof, vandal-proof, harsh environments, IK 08
Other characteristics
compact, backlit, short-travel

Description

86 Keys Compact Format IP65 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, industrial PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise, one complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet, 2 mouse buttons designed for right & left clicking, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. stainless steel top plate with threaded bolts for top panel mounting solution. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Stainless steel backlight keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Gold on gold key switch technology g. Dimension: 361.0mm x 145.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:Ruggedized tough touchpad k. Backlight: Red Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Exhibitions

Meet this supplier at the following exhibition(s):

embedded world 2025

11-13 Mar 2025 Nürnberg (Germany) Hall 3 - Stand 627

  • More information
    Computex 2025

    20-23 May 2025 Taipei (Taiwan Region)

  • More information
