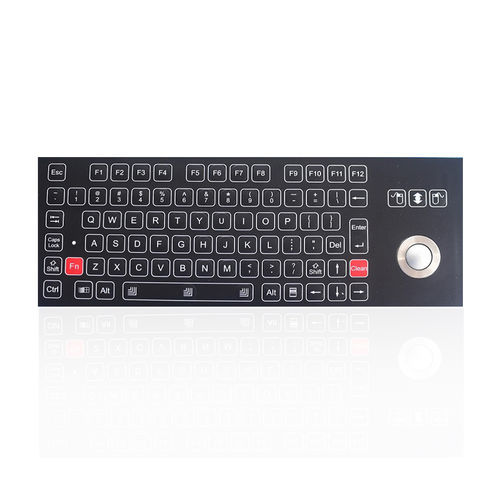

Panel-mount keyboard K-TEK-D343-25-OTB-FN
with mechanical keysmembranewith Fn key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys, membrane
Number of keys
with Fn key, 82-key
Pointing device
with trackball
Domain
industrial, medical, for clean environments, health and environmental safety, hygienic, chemical, for the food industry, for oil industry applications
Connection type
USB, PS2
Material
polycarbonate, phenolic resin
Protection level
waterproof, oil-resistant, chemical-resistant, antibacterial, IP65, moisture-proof
Other characteristics
with numeric keypad, short-travel

Description

82 keys compact format IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities, with function keys on the upper line, IP68 dynamic rated washable 25.0mm optical hardened resin trackball module with 800 DPI resolutions for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized stainless steel plate with brushed treatment and threaded bolts, top panel mounted solution. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Membrane keyboard, medical keyboard, trackball keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Colors: White, black, grey g. Key Switch: Gold-on-gold key switch technology h. Dimension: 343.0mm x 125.0mm (top panel) i. Working Temperature: -20℃ to +65℃ j. Pointing Device:IP68 washable 25mm stainless steel optical ball, or silver hardened resin optical ball Lead-time: ASAP 2-3 weeks Application: Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
