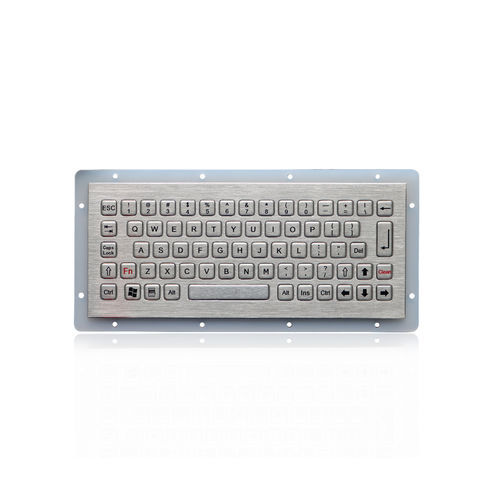

Panel-mount keyboard K-TEK-B210-UT-DWP
with mechanical keys68-keyindustrial

Panel-mount keyboard - K-TEK-B210-UT-DWP - Key Technology (China) Limited - with mechanical keys / 68-key / industrial
Panel-mount keyboard - K-TEK-B210-UT-DWP - Key Technology (China) Limited - with mechanical keys / 68-key / industrial
Panel-mount keyboard - K-TEK-B210-UT-DWP - Key Technology (China) Limited - with mechanical keys / 68-key / industrial - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
68-key
Domain
industrial, for automatic distributors, outdoor, for marine applications, for the transportation industry, for public access kiosks and internet terminals, for mining applications, for clean rooms, control panel, for medical applications, for oil industry applications, for machine tools, for control panels, for the food industry, petrochemical, for self-service information kiosk, information
Connection type
USB, PS2
Structure
ultra-slim
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, rugged, ultra-rugged, scratch-proof, weather-proof, explosion-proof, IP65, rugged
Other characteristics
compact, custom, short-travel

Description

68 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, rear stainless steel plate with mounting holes and water-tight gasket for easy sealing and tightening with cabinet or panel, rear panel mounting. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Gold-on-gold key switch technology g. Dimension: 210.0mm x 90.0mm (front panel) h. Working Temperature: -20℃ to +65℃ Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
