Silicone rubber touchpad K-TEK-M90TP-ML
industrialmilitarymedical

Silicone rubber touchpad - K-TEK-M90TP-ML - Key Technology (China) Limited - industrial / military / medical
Silicone rubber touchpad - K-TEK-M90TP-ML - Key Technology (China) Limited - industrial / military / medical
Silicone rubber touchpad - K-TEK-M90TP-ML - Key Technology (China) Limited - industrial / military / medical - image - 2
Add to favorites
Compare this product


Characteristics

Domain
industrial, military, medical
Material
silicone rubber
Protection level
IP65
Mounting
panel-mount
Other characteristics
USB, 2-key

Description

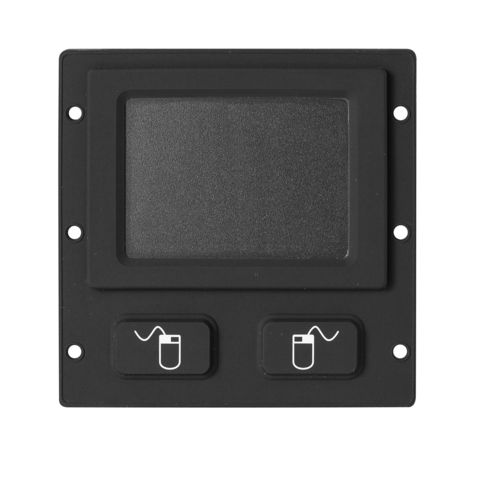

IP65 dynamic Sealed and Ruggedized Rubber Touchpad for fast and accurate cursor position, with 2 raised mouse buttons under touchpad, with mounting holes along the rear panel mounting plate for rear panel mounting. Military level with wide temperature compatibility, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) Parameters:  a. Protection Level: IP65 b. Mounting Type: Rear panel mount solution c. Material: silicone d. Interface: PS2, USB available e. Warranty: 1 year f. Dimension: 90.0mm x 90.0mm (front panel) g. Working Temperature: -20℃ to +65℃ h. Switch Contact Material:Carbon-on-Gold key switch technology PCB i. MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
