Panel-mount keyboard K-TEK-B312-OTB-KP-FN-BL-DWP
with mechanical keyswith Fn keywith 3 mouse keys

Panel-mount keyboard - K-TEK-B312-OTB-KP-FN-BL-DWP  - Key Technology (China) Limited - with mechanical keys / with Fn key / with 3 mouse keys
Panel-mount keyboard - K-TEK-B312-OTB-KP-FN-BL-DWP  - Key Technology (China) Limited - with mechanical keys / with Fn key / with 3 mouse keys
Panel-mount keyboard - K-TEK-B312-OTB-KP-FN-BL-DWP  - Key Technology (China) Limited - with mechanical keys / with Fn key / with 3 mouse keys - image - 2
Panel-mount keyboard - K-TEK-B312-OTB-KP-FN-BL-DWP  - Key Technology (China) Limited - with mechanical keys / with Fn key / with 3 mouse keys - image - 3
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 3 mouse keys, 107-key
Pointing device
with trackball
Domain
industrial, outdoor, control panel, for public access kiosks and internet terminals, for automatic distributors, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
rugged, watertight, vandal-proof, harsh environments, rugged, explosion-proof, IP65
Other characteristics
compact, backlit, with numeric keypad, short-travel

Description

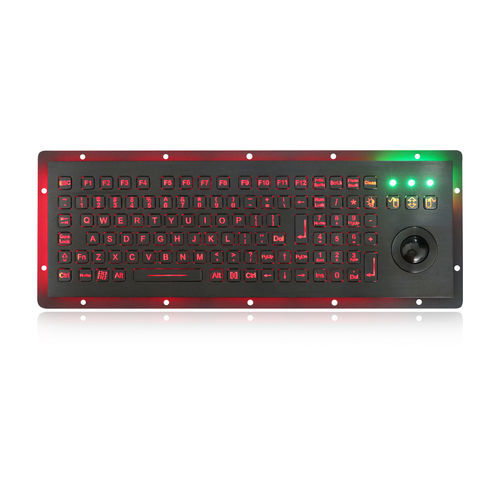

107 Keys Compact Format IP65 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with IP68 dynamic rated washable 25mm stainless Steel optical trackball module with +800DPI resolutions for fast and accurate position with extremely smooth operation, with gold-on-gold key switch technology with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with bail rolling, numeric keypad integrated, function keys are on the top panel for easy operation, stainless Steel rear plate with mounting holes for rear panel mounting solution, one-piece water tight gasket for easy mounting & sealing tightly with cabinet. Stainless Steel key caps etched out via spécial professional way and filled with transparent epoxy for backlight out, with adjustable industrial backlight included. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, sait mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 b. Mounting Type: Rear panel mount solution c. Material: Backlight metal keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Gold on gold key switch technology g. Dimension: 312.0mm x 105.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:25mm optical trackball k. Backlight: Red Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
