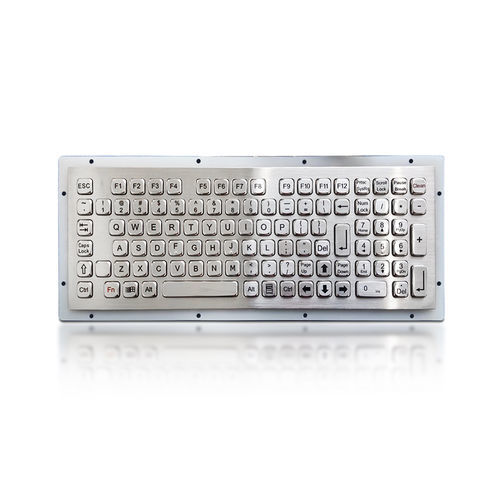

Panel-mount keyboard K-TEK-A340KP-FN-DWP
102-keyindustrialoutdoor

Panel-mount keyboard - K-TEK-A340KP-FN-DWP - Key Technology (China) Limited - 102-key / industrial / outdoor
Panel-mount keyboard - K-TEK-A340KP-FN-DWP - Key Technology (China) Limited - 102-key / industrial / outdoor
Panel-mount keyboard - K-TEK-A340KP-FN-DWP - Key Technology (China) Limited - 102-key / industrial / outdoor - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
102-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, for clean rooms, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
fully-rugged, hermetically-sealed, vandal-proof, harsh environments, IK 08, IP65, waterproof
Other characteristics
compact, long-travel

Description

102 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. FN+Clean combination keys for easy and fast cleaning without needing to take the keyboard away from PC, 1.50mm stainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 340.0mm x 125.0mm (front panel) h. Working Temperature: -20℃ to +65℃ Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Exhibitions

Meet this supplier at the following exhibition(s):

embedded world 2025

11-13 Mar 2025 Nürnberg (Germany) Hall 3 - Stand 627

  • More information
    Computex 2025

    20-23 May 2025 Taipei (Taiwan Region)

  • More information
