Desktop keyboard K-TEK-A420-OTB-KP-FN-MDT-DWP
with Fn keywith 3 mouse keys102-key

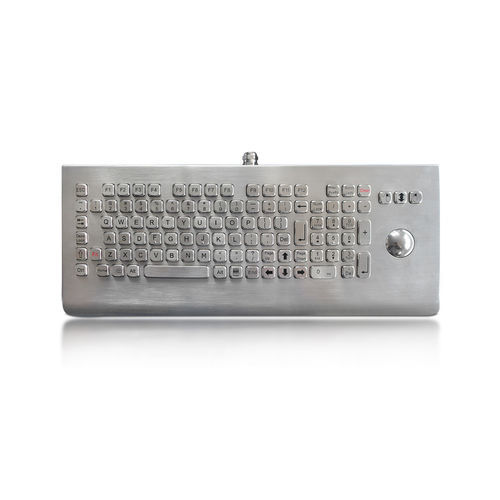

Desktop keyboard - K-TEK-A420-OTB-KP-FN-MDT-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 102-key
Desktop keyboard - K-TEK-A420-OTB-KP-FN-MDT-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 102-key
Desktop keyboard - K-TEK-A420-OTB-KP-FN-MDT-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 102-key - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
desktop
Number of keys
with Fn key, with 3 mouse keys, 102-key
Pointing device
with trackball
Domain
industrial, outdoor, for automatic distributors, for public access kiosks and internet terminals, for clean rooms, control panel, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Material
stainless steel
Protection level
rugged, waterproof, vandal-proof, IK 08, IP68
Other characteristics
compact, long-travel, with numeric keypad

Description

104 Keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard with full keyboard functionalities, with IP68 dynamic rated 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, with numeric keypad and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, wall mounted desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc., IP68 dynamic trackball module with direct drain pipe is optional, without metal parts inside to avoid rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP68 b. Mounting Type: Wall-mountable solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 420.0mm x 181.5mm x 73.0mm (L x W x H) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:38.0mm optical trackball Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Exhibitions

Meet this supplier at the following exhibition(s):

embedded world 2025

11-13 Mar 2025 Nürnberg (Germany) Hall 3 - Stand 627

  • More information
    Computex 2025

    20-23 May 2025 Taipei (Taiwan Region)

  • More information
