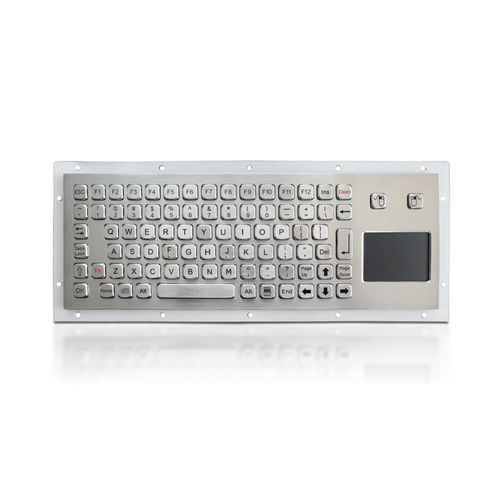

Panel-mount keyboard K-TEK-A343TP-FN-DWP
with Fn keywith 2 mouse keys85-key

Panel-mount keyboard - K-TEK-A343TP-FN-DWP - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 85-key
Panel-mount keyboard - K-TEK-A343TP-FN-DWP - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 85-key
Panel-mount keyboard - K-TEK-A343TP-FN-DWP - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 85-key - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 2 mouse keys, 85-key
Pointing device
with touchpad
Domain
for industrial applications, outdoor, for public access kiosks and internet terminals, for clean rooms, information, for self-service information kiosk, for mining applications
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
rugged, washdown, vandal-proof, rugged, IK 08, IP65, waterproof
Other characteristics
compact, long-travel

Description

85 keys compact format IP65 dynamic washable vandal proof stainless steel industrial keyboard with IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.5mm) with extremely good tactile feeling for fast and accurate data input without any noise. FN + Clean combination keys to lock and disable the whole keyboard for easy cleaning without mis-typing. Rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 343.0mm x 125.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:Ruggedized tough touchpad Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Exhibitions

Meet this supplier at the following exhibition(s):

embedded world 2025

11-13 Mar 2025 Nürnberg (Germany) Hall 3 - Stand 627

  • More information
    Computex 2025

    20-23 May 2025 Taipei (Taiwan Region)

  • More information
