Panel-mount keyboard K-TEK-M284-FN-BL-NV-151B+TP6549-002
with Fn keywith 2 mouse keys89-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 2 mouse keys, 89-key
Pointing device
with touchpad
Domain
military
Connection type
USB
Material
silicone rubber
Protection level
rugged, waterproof, rugged, oil-resistant, MIL-STD 810F, MIL-STD-461G, IP65
Other characteristics
compact, long-travel, backlit, silicone-key

Description

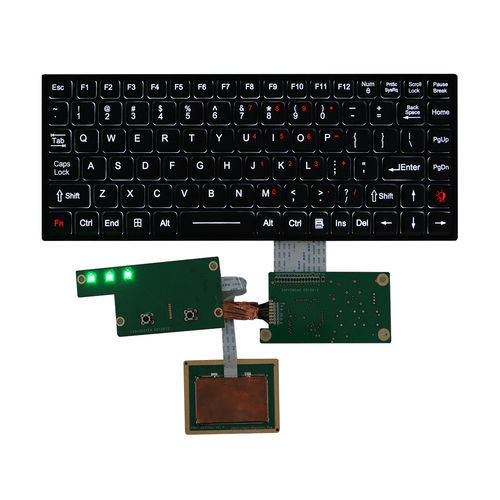

89 keys IP65 sealed & ruggedized silicone rubber military keyboard with a separate military-grade wide temperature touchpad with 400DPI resolutions for fast cursor position, as well as independent left and right mouse buttons with 3 LEDs, 12 function keys on top line for easy operation, military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mount solution, adjustable white/red backlight included, with USB interface. Military level, designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity). Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Panel mount solution c. Material: Silicone rubber keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Backlight: White g. Key Switch: Carbon-on-Gold key switch technology with gold PCB h. Dimension: Keyboard: 284.0mm x 109.0mm (L x W )  Touchpad: 68.0mm x 49.0mm (L x W) i. Working Temperature: -40℃ to +75℃ j. Pointing Device:Ruggedized tough touchpad Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

Exhibitions

Meet this supplier at the following exhibition(s):

Electronica 2024
Electronica 2024

12-15 Nov 2024 München (Germany) Hall C6 - Stand 520/9

  • More information
