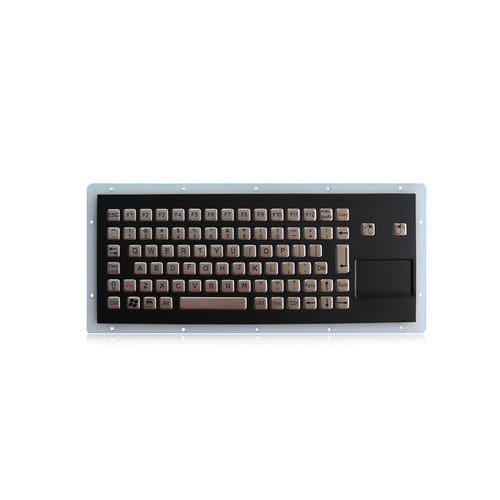

Panel-mount keyboard K-TEK-B255TP-FN-UT-BT-DWP
with mechanical keyswith Fn keywith 2 mouse keys

Panel-mount keyboard - K-TEK-B255TP-FN-UT-BT-DWP - Key Technology (China) Limited - with mechanical keys / with Fn key / with 2 mouse keys
Panel-mount keyboard - K-TEK-B255TP-FN-UT-BT-DWP - Key Technology (China) Limited - with mechanical keys / with Fn key / with 2 mouse keys
Panel-mount keyboard - K-TEK-B255TP-FN-UT-BT-DWP - Key Technology (China) Limited - with mechanical keys / with Fn key / with 2 mouse keys - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 2 mouse keys, 85-key
Pointing device
with touchpad
Domain
for industrial applications, for clean environments, for food industry applications
Connection type
USB, PS2
Structure
ultra-slim
Material
brushed stainless steel, titanium
Protection level
rugged, robust, IK 08, IP65, IP67, rugged, waterproof, vandal-proof
Other characteristics
compact, short-travel

Description

With IP65 rugged and tough touchpad Robust design, vandal proof structure Anti-salt spray, IP67 rated waterproof Durable black titanium electroplated on the top stainless steel plate Rear panel mounting solution DESCRIPTION: 85 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with with IP65 rugged and tough touchpad module for fast and accurate position with extremely smooth operation, MECHANICAL DATA Actuator/keys: 85 keys, super quality SUS304 brushed stainless steel Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys areavailable Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar. Key travel: 0.45mm Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4N+/-0.1N for key 14.0mm x 28.0mm(pressure point) Switch life: more than 5 million of operations. Front Plate: 1.5mm thickness super quality brushed stainless steel Back Plate: 1.5mm thickness brushed & oxidized aluminium G.W.: 1.60KGs Dimensions: 255.0mm x 105.0mm (front panel) , 273.0mm x 123.0mm (back panel) ELECTRICAL DATA Supply Voltage: +5V DC +/-5% Current Rating: 100mA 50mA for keyboard and touchpad without backlight. EMC Standard:EN 55032:2015 EN 55035:2017 Lifespan > 5 years Switch Contact Material: Gold-on-Gold key switch technology PCB. Interface: PS2, USB available. OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). ENVIRONMENTAL ADAPTABILITY Operating temperature:-20oC to +60oC Storage temperature: -30oC to +70oC Operating RH: 30-90% Atmospheric pressure: 60-106Kpa.
