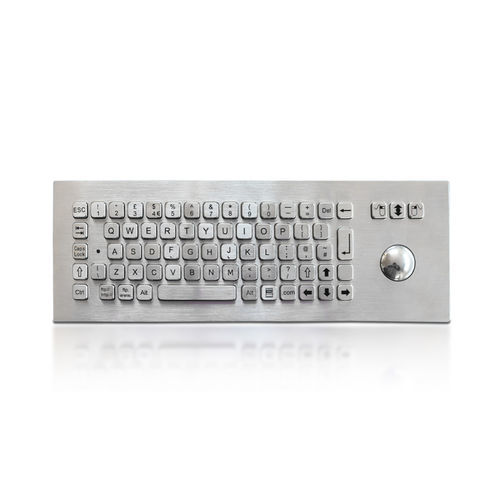

Panel-mount keyboard K-TEK-A361-MTB-DWP
with mechanical keyswith 3 mouse keys71-key

Panel-mount keyboard - K-TEK-A361-MTB-DWP - Key Technology (China) Limited - with mechanical keys / with 3 mouse keys / 71-key
Panel-mount keyboard - K-TEK-A361-MTB-DWP - Key Technology (China) Limited - with mechanical keys / with 3 mouse keys / 71-key
Panel-mount keyboard - K-TEK-A361-MTB-DWP - Key Technology (China) Limited - with mechanical keys / with 3 mouse keys / 71-key - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with 3 mouse keys, 71-key
Pointing device
with trackball
Domain
industrial, outdoor, for public access kiosks and internet terminals, for clean rooms, for the food industry, for clean environments, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
waterproof, vandal-proof, robust, IK 08, IP65, rugged
Other characteristics
long-travel

Description

71 keys (including 3 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP65 static rated 38.0mm stainless steel Mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Stainless steel industrial keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 361.0mm x 125.0mm (top panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:38.0mm mechanical trackball Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
