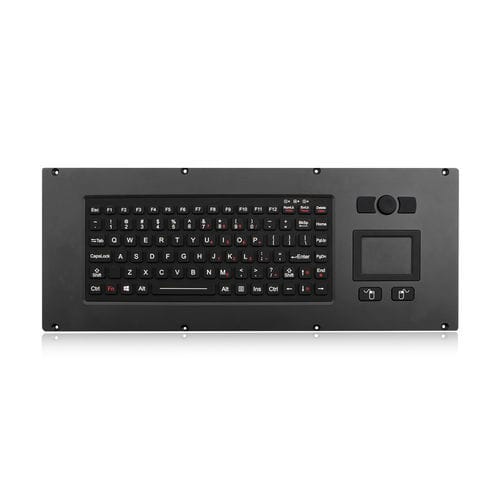

Panel-mount keyboard K-TEK-M464-DTP-DHP-FN-BL
with mechanical keyswith Fn key91-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, 91-key, with 4 mouse keys
Pointing device
with touchpad
Domain
for industrial applications, for clean rooms, for medical applications, for the food industry, for oil industry applications
Connection type
USB
Material
aluminum, alloy, silicone rubber
Protection level
rugged, IP65, rugged, waterproof
Other characteristics
compact, custom, long-travel, backlit

Description

87 keys IP65 dynamic sealed & ruggedized silicone rubber industrial keyboard, with sealed and tough military level wide temperature touch pad and Force Sensing Resistor pointing device for fast and accurate cursor position, 12 function keys on top line for easy operation, industrial carbon-on-gold key switch technology with key stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+CLEAN combination key to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from computer, The electronics controller module is shielded and protected by aluminum housing, panel surface by oxidation painting top, panel mount with sinking holes, adjustable industrial white backlight included, Aviation plug or USB2.0 interface available. Parameters: a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Silicone rubber keyboard d. Interface: PS2, USB or aviation plug available e. Warranty: 1 year f. Backlight: White g. Key Switch: Carbon-on-gold key switch technology h. Dimension: 464.00mm x 182.00mm (L x W ) i. Working Temperature: -20℃ to +65℃ j. Pointing Device:Touchpad and Force Sensing Resistor pointing device Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
