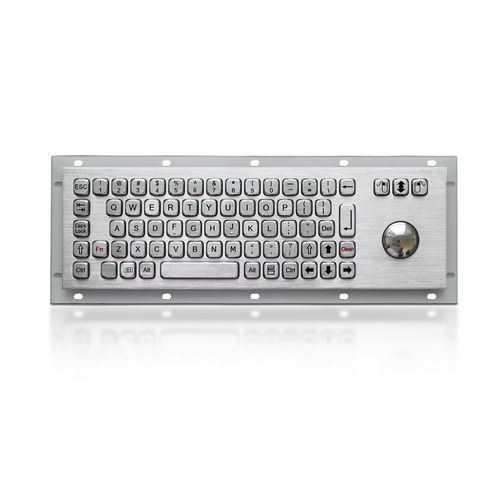

Panel-mount keyboard K-TEK-A343-MTB-DWP
with 3 mouse keys71-keywith trackball

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with 3 mouse keys, 71-key
Pointing device
with trackball
Domain
for industrial applications, outdoor, for public access kiosks and internet terminals, for clean rooms, for the food industry, for clean environments, information, for self-service information kiosk, for mining applications, marine
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
fully-rugged, hermetically-sealed, vandal-proof, rugged, IK 08, IP65, waterproof
Other characteristics
compact, long-travel

Description

71 keys compact format IP65 dynamic waterproof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller, and IP65 static 38.0mm stainless steel mechanical trackball module with 400 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Industrial Backlight optional(red/blue/white/green optional). FN + Clean combination keys to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 343.0mm x 105.0mm(front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:38.0mm stainless steel mechanical trackball module Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Other Key Technology (China) Limited products

IP65 Waterproof Metal Keyboard
