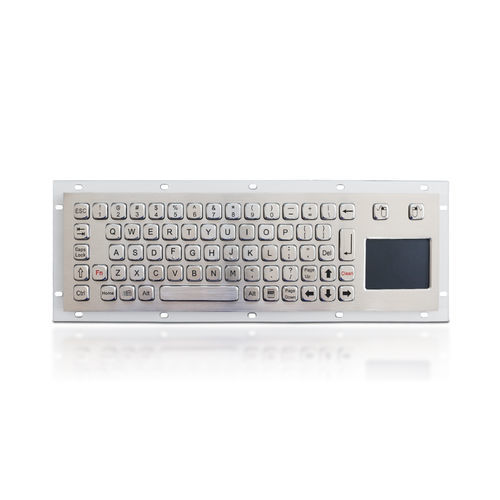

Panel-mount keyboard K-TEK-A343TP-DWP
with Fn keywith 2 mouse keys70-key

panel-mount keyboard
panel-mount keyboard
panel-mount keyboard
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 2 mouse keys, 70-key
Pointing device
with touchpad
Domain
for public access kiosks and internet terminals, industrial, outdoor, for clean rooms, for the food industry, for automotive applications, for control panels, information, for self-service information kiosk, for mining applications, for oil industry applications
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, robust, IK 08, explosion-proof, IP65
Other characteristics
compact, long-travel

Description

70 keys (including 2 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position, designed with two mouse buttons for right & left clicking, one complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet,industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise. FN+Clean combination keys for easy and fast cleaning without needing to take the keyboard away from PC. Rear panel mounting solution with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 343.0mm x 105.0mm (front panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:Ruggedized tough touchpad Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
