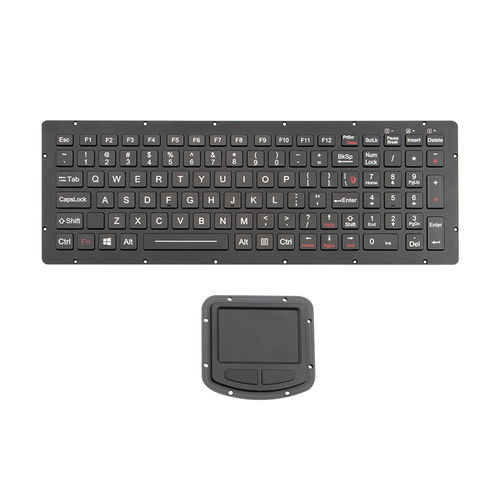

Panel-mount keyboard K-TEK-M334KP-FN-BL-NV-151B-DWP +M73TP-IL
with Fn keywith 2 mouse keys101-key

Panel-mount keyboard - K-TEK-M334KP-FN-BL-NV-151B-DWP +M73TP-IL - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 101-key
Panel-mount keyboard - K-TEK-M334KP-FN-BL-NV-151B-DWP +M73TP-IL - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 101-key
Panel-mount keyboard - K-TEK-M334KP-FN-BL-NV-151B-DWP +M73TP-IL - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 101-key - image - 2
Panel-mount keyboard - K-TEK-M334KP-FN-BL-NV-151B-DWP +M73TP-IL - Key Technology (China) Limited - with Fn key / with 2 mouse keys / 101-key - image - 3
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 2 mouse keys, 101-key
Pointing device
with touchpad
Domain
military, marine, for the navy
Connection type
USB, PS2
Material
aluminum alloy, polymer
Protection level
rugged, waterproof, vandal-proof, MIL-STD 810F, MIL-STD-461G, IP65
Other characteristics
long-travel, backlit, with numeric keypad

Description

101 keys IP65 dynamic water proof vandal proof aluminum alloy ruggedized military keyboard with sealed touchpad, with durable polymer keys. The high quality ruggedized aluminum alloy top panel is processed by CNC. With carbon-on-gold key switch technology with stroke 1.20mm with extremely good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium spray-paint on the aluminum alloy panel, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, front panel with countersunk hole for easy top panel mounting and maintenance. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing. Which meets MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity). Parameters:  a. Protection Level: IP65 b. Mounting Type: Panel mount solution c. Categories: Chiclet keyboard, marine keyboard, rugged keyboard, military keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Backlight: White g. Key Switch: Carbon-on-gold key switch technology. h. Dimension: Keyboard : 334.0mm x 118.0mm (L x W), Touchpad: 73.0mm x 76.0mm(L x W) i. Working Temperature: -40℃ to +75℃ j. Pointing Device:Ruggedized tough touchpad k. MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Lead-time: ASAP 2-3 weeks Application: Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
