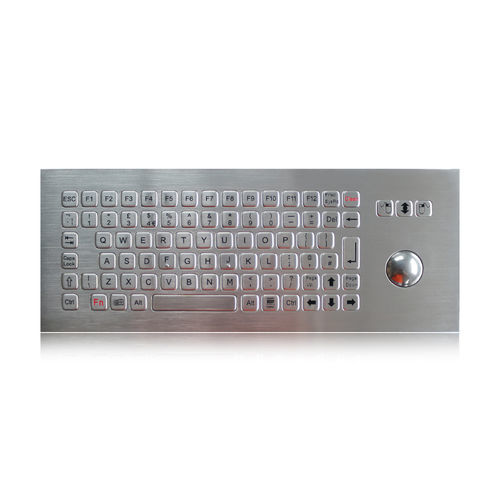

Panel-mount keyboard K-TEK-B361-OTB-FN-DWP
with Fn keywith 3 mouse keys86-key

Panel-mount keyboard - K-TEK-B361-OTB-FN-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key
Panel-mount keyboard - K-TEK-B361-OTB-FN-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key
Panel-mount keyboard - K-TEK-B361-OTB-FN-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key - image - 2
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 3 mouse keys, 86-key
Pointing device
with trackball
Domain
for public access kiosks and internet terminals, for industrial applications, outdoor, for clean rooms, for the food industry, for clean environments, for food industry applications, health and environmental safety, for control panels, information, for oil industry applications, for self-service information kiosk, for mining applications
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, harsh environments, robust, IK 08, explosion-proof, IP65
Other characteristics
compact, custom, integrated, with numeric keypad, short-travel

Description

86 keys IP65 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial metal dome PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, which is without metal parts inside to avoid rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 b. Mounting Type: Top panel mount solution c. Material: Vandal proof metal keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Gold on gold key switch technology PCB g. Dimension: 361.0mm x 145.0mm (L x W) h. Working Temperature: -20℃ to +65℃ i. Pointing Device:38.0mm optical trackball Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
