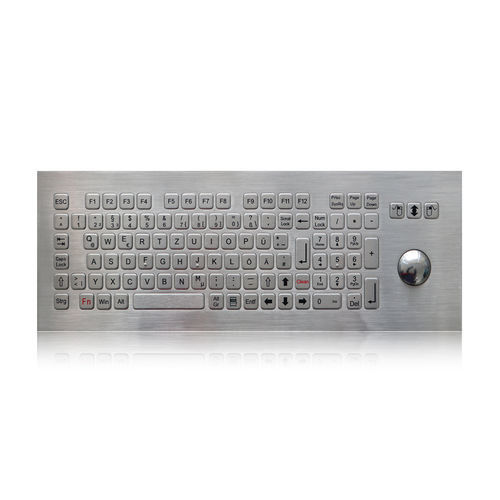

104 keys (including 3 mouse buttons) compact format IP65 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial metal dome PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input. F1, F2, F3…F10, F11, F12 are on the top line for easy operation, with numeric keypad , 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, which is without metal parts inside to avoid rust risk and anti-salt spray corrosion.
Parameters:
a. Protection Level: IP65
b. Mounting Type: Top panel mount solution
c. Material: Vandal proof metal keyboard
d. Interface: PS2, USB available
e. Warranty: 1 year
f. Key Switch: Gold on gold key switch technology PCB
g. Dimension: 420.0mm x 145.0mm (top panel)
h. Working Temperature: -20℃ to +65℃
i. Pointing Device:38.0mm optical trackball
Lead-time: ASAP 2-3 weeks
Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
