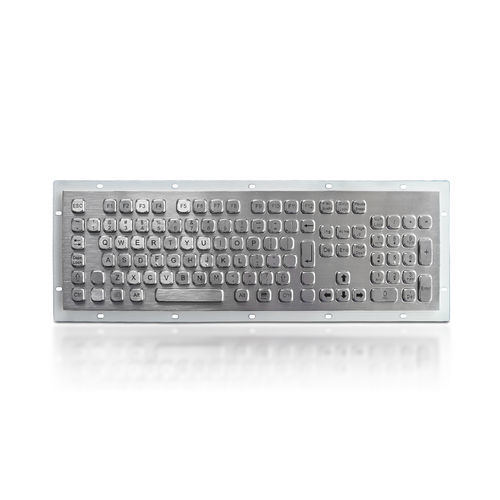

Panel-mount keyboard K-TEK-A396KP-FN-DWP
with Fn key108-keyfor machine tools

Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools
Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools
Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools - image - 2
Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools - image - 3
Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools - image - 4
Panel-mount keyboard - K-TEK-A396KP-FN-DWP  - Key Technology (China) Limited - with Fn key / 108-key / for machine tools - image - 5
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Number of keys
with Fn key, 108-key
Domain
for machine tools, industrial, outdoor, for automatic distributors, for self-service information kiosk, for public access kiosks and internet terminals, for clean rooms, control panel, for medical applications, for oil industry applications, for the food industry, for mining applications, marine, for clean environments, information
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
fully-rugged, waterproof, vandal-proof, rugged, robust, IK 08, explosion-proof, IP65
Other characteristics
compact, long-travel, custom, with numeric keypad

Description

108 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Rear panel mount solution c. Material: Stainless steel keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon-on-gold key switch technology g. Dimension: 396.0mm x 125.0mm (front panel) h. Working Temperature: -20℃ to +65℃ Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
