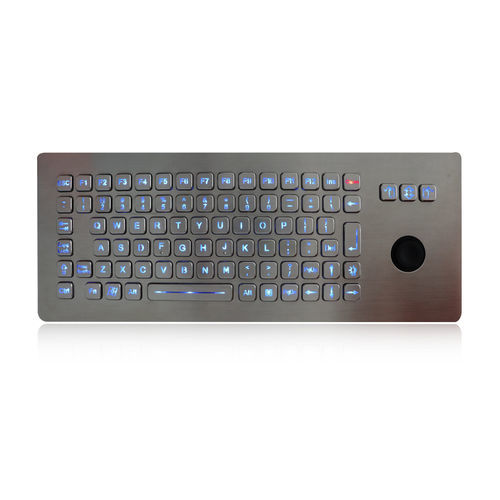

Panel-mount keyboard K-TEK-A361-DHP-FN-BL-DWP
with Fn keywith 3 mouse keys86-key

Panel-mount keyboard - K-TEK-A361-DHP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key
Panel-mount keyboard - K-TEK-A361-DHP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key
Panel-mount keyboard - K-TEK-A361-DHP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key - image - 2
Panel-mount keyboard - K-TEK-A361-DHP-FN-BL-DWP - Key Technology (China) Limited - with Fn key / with 3 mouse keys / 86-key - image - 3
Add to favorites
Compare this product

Go to the Key Technology (China) Limited website for more information

Characteristics

Mounting
panel-mount
Number of keys
with Fn key, with 3 mouse keys, 86-key
Pointing device
with other pointing device
Domain
for public access kiosks and internet terminals, for automatic distributors, for industrial applications, outdoor, for clean rooms, control panel, for the food industry, information, for self-service information kiosk, for mining applications, for marine applications, marine
Connection type
USB, PS2
Material
brushed stainless steel
Protection level
rugged, waterproof, vandal-proof, rugged, robust, IK 08, explosion-proof, ESD, anti-static, IP65
Other characteristics
compact, long-travel, custom, backlit

Description

86 keys compact format IP65 dynamic washable vandal proof stainless steel industrial keyboard with IP66 dynamic sealed & ruggedized tough hula pointer mouse for fast and accurate cursor position, one complete silicone rubber along 3.0mm thick brushed & oxidized aluminum back plate for easy mounting & sealing tightly with cabinet, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data Input without any noise, top panel mounting solution. Which is good for outdoor application with direct rain and harsh environment with humidity, much dynamic water, oil, dirt, salt mist etc. Stainless steel key caps etched out via special professionalway and filled with transparent epoxy for backlight out, with adjustable industrial blue backlight included. Parameters:  a. Protection Level: IP65 dynamic (front panel) b. Mounting Type: Top panel mount solution c. Material: Stainless steel backlight keyboard d. Interface: PS2, USB available e. Warranty: 1 year f. Key Switch: Carbon on gold key switch technology PCB g. Dimension: 361.0mm x 145.0mm (top panel) h. Working Temperature: -20℃ to +65℃ i. Pointing Device：Hula pointer mouse k. Backlight: Blue Lead-time: ASAP 2-3 weeks Application: Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
