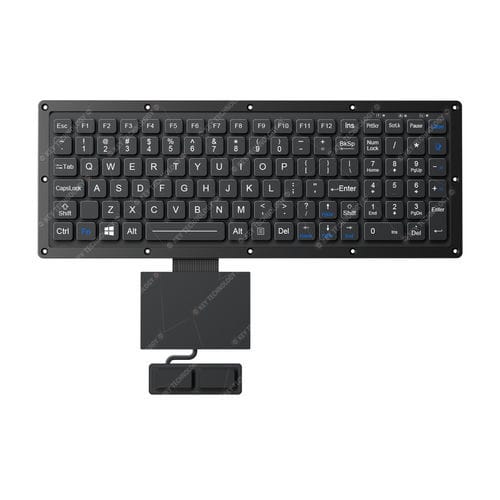

Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K
with mechanical keyswith 2 mouse keys102-key

Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 102-key
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 102-key
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 102-key - image - 2
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 102-key - image - 3
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-EP+TP85-DML+2K - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 102-key - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with Fn key, with 2 mouse keys, 102-key
Pointing device
with touchpad
Domain
industrial, control panel, military, for hygienic applications, maritime industry, for mobile machines, for aeronautical applications
Connection type
USB
Structure
QWERTY, ultra-slim
Material
plastic, silicone rubber
Protection level
scratch-proof, waterproof, rugged, IP67, for harsh environments, oil-resistant, chemical-resistant, antibacterial, weatherproof, anti-interference, MIL-STD 810F, IP65
Other characteristics
compact, custom, long-travel, backlit, with numeric keypad, embedded

Description

102 keys IP67 fully sealed and durable embedded ultra thin rugged keyboard, with built-in ultra-thin Flexible Printed Circuit, back plate made of reinforced aluminum alloy, and the front panel is equipped with an aluminum alloy frame to reinforce and prevent keyboard deformation, external with fully sealed waterproof and reinforced wide-temperature touchpad for fast cursor position, with independent numeric keypad on the right side of keyboard and 12 function keys(F1, F2, ... F12) on top line for easy operation. The keyboard surface adopts silicone rubber material and carbon contact + FPC carbon-on-gold key switch technology, with 1.50mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity. Dimensions: Keyboard: 330.6mm x 123.6mm (front panel) Touchpad: 85.0mm x 60.0mm (L x W)
