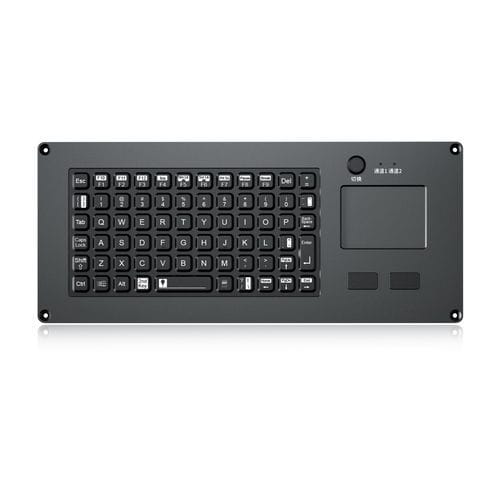

Panel-mount keyboard K-TEK-M310TP-FN-BL-ML+KVM
with mechanical keyswith 2 mouse keys69-key

Panel-mount keyboard - K-TEK-M310TP-FN-BL-ML+KVM - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 69-key
Panel-mount keyboard - K-TEK-M310TP-FN-BL-ML+KVM - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 69-key
Panel-mount keyboard - K-TEK-M310TP-FN-BL-ML+KVM - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 69-key - image - 2
Panel-mount keyboard - K-TEK-M310TP-FN-BL-ML+KVM - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 69-key - image - 3
Panel-mount keyboard - K-TEK-M310TP-FN-BL-ML+KVM - Key Technology (China) Limited - with mechanical keys / with 2 mouse keys / 69-key - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
with mechanical keys
Number of keys
with 2 mouse keys, 69-key
Pointing device
with touchpad
Domain
outdoor, industrial, control panel, for public access kiosks and internet terminals, for military applications, for electrical networks, for aeronautical applications, for machine tools, for the transportation industry, information, for mining applications, for marine applications, marine, for the aerospace industry
Connection type
USB
Structure
QWERTY, silicone-key, AZERTY, ultra-slim
Material
stainless steel, silicone rubber
Protection level
vandal-proof, waterproof, rugged, antibacterial, scratch-proof, rugged, abrasion-resistant, anti-interference, scratch resistance, MIL-STD 810F, IP65
Other characteristics
compact, custom, backlit, integrated, OEM

Description

69 keys IP65 sealed & ruggedized silicone rubber military keyboard, equipped with fully sealed military-grade wide temperature integrated ultra-thin carbon-on-gold PCB control module, 12 FN function keys (F1, F2...F11, F12) on the top line for easy operation, with sealed & ruggedized tough touchpad for fast and accurate cursor position, with carbon-on-gold key switch technology with 1.50mm key stroke with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface treatment to withstand most chemicals and liquids under harsh environment. SUS304 stainless steel front panel and rear bottom cover, high-quality titanium-plated black color surface treatment, adjustable white backlight included, panel mount version with 4 sinking holes. Built-in dual-channel KVM conversion PCB control board, with a switch button on the front to enable switching control between the two devices. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD (optional). DIMENSIONS: 310.0mm x 312.0mm (Front Panel)
