Panel-mount keyboard K-TEK-V285-FN-BL-SC-FC-ML-DWP
scissor switch86-keyfor aerospace applications

Panel-mount keyboard - K-TEK-V285-FN-BL-SC-FC-ML-DWP - Key Technology (China) Limited - scissor switch / 86-key / for aerospace applications
Panel-mount keyboard - K-TEK-V285-FN-BL-SC-FC-ML-DWP - Key Technology (China) Limited - scissor switch / 86-key / for aerospace applications
Panel-mount keyboard - K-TEK-V285-FN-BL-SC-FC-ML-DWP - Key Technology (China) Limited - scissor switch / 86-key / for aerospace applications - image - 2
Panel-mount keyboard - K-TEK-V285-FN-BL-SC-FC-ML-DWP - Key Technology (China) Limited - scissor switch / 86-key / for aerospace applications - image - 3
Panel-mount keyboard - K-TEK-V285-FN-BL-SC-FC-ML-DWP - Key Technology (China) Limited - scissor switch / 86-key / for aerospace applications - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
86-key
Domain
control panel, industrial, outdoor, for clean rooms, for public access kiosks and internet terminals, for the navy, for medical applications, for aeronautical applications, for military applications, for mining applications, for hygienic applications, for the automotive industry, for aerospace applications, for marine applications
Connection type
USB, PS2
Structure
QWERTY, silicone-key, AZERTY, ultra-slim
Material
plastic
Protection level
chemical-resistant, waterproof, rugged, vandal-proof, harsh environments, vibration-resistant, anti-corrosion, MIL-STD 810F, oil-resistant, antibacterial, scratch-proof, ultra-rugged, IP67, impact-resistant, weatherproof
Other characteristics
compact, custom, long-travel, backlit, embedded, OEM

Description

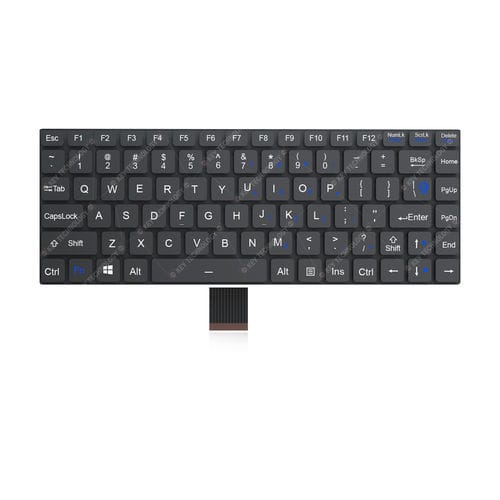

86 keys compact IP67 dynamic fully sealed waterproof and durable embedded ultra thin rugged patented scissor switch keyboard, with built-in ultra-thin Flexible Printed Circuit, 12 function keys (F1, F2, ... F12) are on top line for easy operation, and numeric keypad on right side. It adopts scissor switch technology with 1.20mm±0.10mm key travel with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key or repeat output during the keyboard operation, with durable coating & anti-microbial keyboard surface withstand most chemicals and liquids under harsh environment. FN + Clean combination keys for easy cleaning without taking the keyboard away from PC to avoid mis-operation or mis-typing. Adjustable white backlight included, panel mount solution. Designed to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, rain, salt mist, dust, fungus, solar radiation etc.) as well as the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity; MIL-STD-461G-EMC-EMI-EMS-ESD (optional). Patented keyboard (Patent number: 202422198937.6) Dimensions: 285.0mm x 108.0mm (Maximum frame size)
