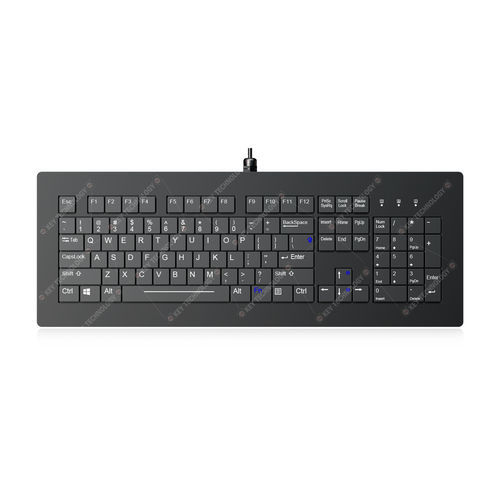

Desktop keyboard K-TEK-V430KP-FN-SC-ML-DT-DWP
scissor switchwith Fn key104-key

Desktop keyboard - K-TEK-V430KP-FN-SC-ML-DT-DWP - Key Technology (China) Limited - scissor switch / with Fn key / 104-key
Desktop keyboard - K-TEK-V430KP-FN-SC-ML-DT-DWP - Key Technology (China) Limited - scissor switch / with Fn key / 104-key
Desktop keyboard - K-TEK-V430KP-FN-SC-ML-DT-DWP - Key Technology (China) Limited - scissor switch / with Fn key / 104-key - image - 2
Desktop keyboard - K-TEK-V430KP-FN-SC-ML-DT-DWP - Key Technology (China) Limited - scissor switch / with Fn key / 104-key - image - 3
Desktop keyboard - K-TEK-V430KP-FN-SC-ML-DT-DWP - Key Technology (China) Limited - scissor switch / with Fn key / 104-key - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
desktop
Key type
scissor switch
Number of keys
with Fn key, 104-key
Domain
industrial, for public access kiosks and internet terminals, for military applications, for marine applications, for the navy, for aerospace applications, for aeronautical applications
Connection type
USB, PS2
Structure
QWERTY, silicone-key, AZERTY
Material
silicone rubber
Protection level
waterproof, rugged, vandal-proof, scratch-proof, weatherproof, MIL-STD 810F, IP68
Other characteristics
compact, custom, long-travel, with numeric keypad

Description

104 keys IP68 dynamic sealed & rugged scissors rubber dome general keyboard, with numeric keypad on right side of keyboard and 12 FN keys (F1, F2...F11, F12) on top line for easy operation, scissors switch technology with 2.00mm±0.20mm long stroke with extremely good tactile feeling for fast and accurate data input without any noise, there will be no key value missing, no stuck key, no repeated key value output during the keyboard operation. With NUM Lock/CAPS Lock/Scroll Lock indicators on upper right part of the keyboard. Rugged CNC aluminum processed housing for movable desktop keyboard version with slope design at three different operation angles for comfortable operations. The exposed materials of the keyboard meet UL94-HB and the USB cable meets UL1581 VW-1 with 3.00m exposed USB cable length. The whole keyboard meets EMC: IEC 61000-6-2(2016), IEC 61000-6-4(2018), ESD Level 4: IEC 61000-4-2(2008), performance A. Built to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), as well as military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency and continuity; MIL-STD-461G (EMC, EMI, EMS, ESD) optional. DIMENSION: 426.00mm x 155.00mm x 22.00mm ( L x W x H)
