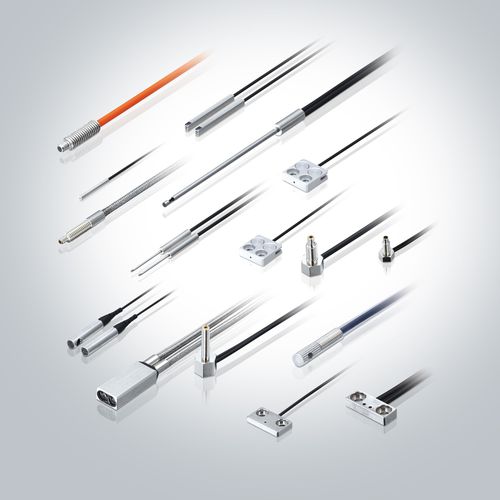

Fiber optic sensor head FU series

Complete line of fibre units from Unbreakable Fibre, Long-distance and small spot. Select the type best suited to your application Features Hex-shaped Heads Easy, trouble-free mounting. Unbreakable fibre exits the housing at a right angle, like a periscope. ToughFlex Heads A flexible stainless steel jacket protects the fibre from daily wear. Wide Area Heads 10 mm width area detection. Reduces effects of vibration, or target position. Small Beam Spot Heads Simplifies setup and helps reduce installation time. Thin Sleeve Heads Thin sleeve, thrubeam type for use in tight locations. High-flex Heads High-flex, reflective type provides higher flexibility than an electrical wire. Narrow Beam Heads Long-distance, side-view type. High-power unit with a side-view lens built in. Heat Resistant Heads Heat resistant fibre type. Resists temperatures up to 350 ℃ (+662 ℉). Liquid Level Heads ToughFlex tube-mountable liquid level detection type. Long Distance Heads ULTRA long detecting distance up to 900 mm (FU-61), 1800 mm (FU-71). Semiconductor/Liquid Crystal Detection Heads Long detecting distance, definite-reflective type. Suitable for circuit board deflection detection and wafer mapping.
