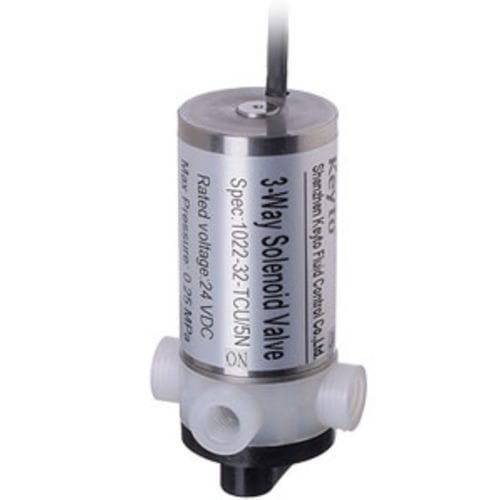

Diaphragm solenoid valve 1022-32 series

direct-operated3-waywater

The solenoid valve of 1022/1032/1042 series is a family of diaphragm valve with 2/2.5/3.5mm orifice diameter which developed by keyto. Its function is controlling the on/off of fluid flow path. This series solenoid valve is a high performance, low cost and maintenance free diaphragm valve with multiple model options, which are suitable for different reagents under different working conditions. Feature of Direct Acting Solenoid Valves Keyto 1022/1032/1042 series has a small dead volume: zero dead volume inside the solenoid valve. And multiple options for wetted material:① Body Material: PPS POM PTFE② Seal Material: EPDM FFKM FKM. It’s a long-lifetime, high-performance solenoid product. Large flow CV≥0.04; flow≥6.8/8.5/8.5mL/s (pressure drop 50KPa, 25℃, pure water). Small dead volume zero dead volume inside the solenoid valve. Multiple option for wetted material ①Body Material: PPS POM PTFE ②Seal Material: EPDM FFKM FKM Long lifetime Long lifetime, high performance.
