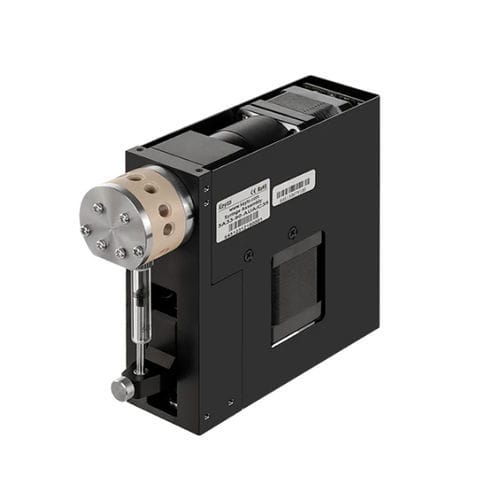

The SSP Series is a compact, highly integrated, and flexible precision dispensing system, ideal for low flow rates and minimal pulsation.
Specifications
ep Resolution - Standard mode 3,000 steps, Hi-Res mode 24,000 steps
Accuracy (full stroke) - ≤ 1% (at 25°C, with 1ml syringe and above using deionized water)
Precision (full stroke) - ≤ 0.05% CV (at 25°C, with 1ml syringe and above using deionized water)
Syringe Volumes - 100μL、250μL、500μL、1ml、2.5ml、5ml
Fluid Contact Materials - Syringe: Borosilicate glass, PTFE/UHMWPE (seal)
Rotary Valve (Plastic version):Stator - PCTFE/PEEK, Rotor - PTFE/UHMWPE
Rotary Valve (Ceramic version):Stator-Ceramic,Rotor-Ceramic
Solenoid Valve: PEI+FKM+PEEK
Rotary Valve Options - Non-distribution: 3-port, 4-port, 4-port dual-loop
Distribution: 3-port, 4-port, 6-port, 9-port, 12-port
Solenoid Valve Options - 2-way Non-distribution, 3-way Distribution
Valve drive - ≤ 250 ms between neighboring ports
Fittings - 1/4-28 UNF
Interface Type - RS232, RS485, or CAN
Communication Rates - RS232/RS485 9600 or 38400 baud
CAN-100Kb, 125Kb, 250Kb, 500Kb, 1Mb
Format - Date Bits - 8, Parity - None, Stop Bit - 1
Half Duplex, Data Terminal and OEM protocols
Addressing - Maximum of 15 pumps can be addressed individually
Power Requirement - Supply voltage: 24 VDC±10%, Peak current: 2.0 A
Operating Temperature and Humidity - 15° - 40°C (59° - 104°F ) and 20-80% RH at 40°C (104°F) Non-Condensing
Dimensions - H127*W44.5*D107mm
Why Choose Keyto SSP Series Syringe Pumps
01
High Accuracy and Precision
Ensures accurate fluid delivery with full stroke accuracy ≤1% and CV value ≤0.05%.
02
Integrated Functions
Options to integrate glass syringes, rotary valves,
