Syringe pump MSP

waterelectricstationary

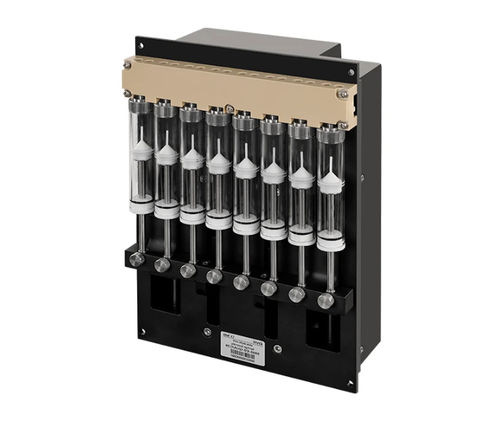

The MSP Series is designed for multi-probe liquid handling, operating 4 or 8 independent flow paths as adjacent pairs. Efficient and precise control is provided over multiple liquid handling tasks. Specifications Specifications - MSP Series Multi-Channel Syringe Pumps Stroke Length - 30mm - 60mm Stroke Speed - 1.2s-100mins/stroke Step Resolution - Standard mode 6,000 steps, Hi-Res mode 48,000 steps Accuracy (full stroke) - ≤ 1% (at 25°C, with 1ml syringe and above using deionized water) Precision (full stroke) - ≤ 0.1% CV at 25-100ul ≤ 0.05% CV at 250ul-5ml (at 25°C, with 1ml syringe and above using deionized water) Syringe Volumes - 50μL、100μL、250μL、500μL、1ml Fluid Contact Materials - Syringe: Borosilicate glass, PTFE/UHMWPE (seal) Rotary Valve (Plastic version)：Stator - PCTFE/PEEK, Rotor - PTFE/UHMWPE Rotary Valve (Ceramic version)：Stator-Ceramic，Rotor-Ceramic Solenoid Valve: PEI+FKM+PEEK Rotary Valve Options - 3-port Non-distribution, 3-port Distribution Solenoid Valve Options - 2-way Non-distribution, 3-way Distribution Valve drive - ≤ 250 ms between neighboring ports Fittings - 1/4-28 UNF Interface Type - RS232, RS485, or CAN Communication Rates - RS232/RS485 9600 or 38400 baud CAN-100Kb, 125Kb, 250Kb, 500Kb, 1Mb Format - Date Bits - 8, Parity - None, Stop Bit - 1 Half Duplex, Data Terminal and OEM protocols Addressing - Maximum of 15 pumps can be addressed individually Power Requirement - Supply voltage: 24 VDC±10%, Peak current: 2.0 A
