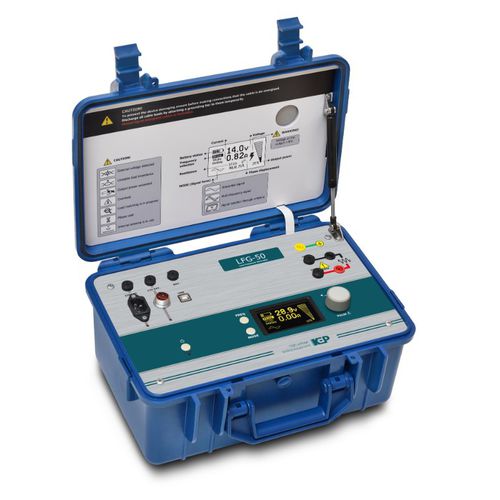

Underground pipe locator LFG-50

for underground pipes

LOW FREQUENCY GENERATOR Generator LFG-50 is used as a signal source in a cable tracing and fault location set for the following applications: • tracing – finding the route and determining the burial depth of underground cables and other hidden utilities; • fault location – pinpointing interphase and phase-to-sheath short circuits faults; • cable identification – identifying a correct cable from a bunch. HIGH POWER LFG-50 stands out from other portable low frequency generators with its unusually high output power (up to 50 VA). High power output significantly extends the useful signal range and ensures accurate location even under such adverse factors as large burial depth of an object, wet soil, external inductance, etc. WIDE SELECTION OF OPERATING FREQUENCIES The generator features four sets of frequencies each containing three different frequencies. Frequencies may be customized on request. The wide frequency selection allows for almost any low frequency signal receiver to be used in conjunction with the generator. AUTOMATIC IMPEDANCE MATCHING The output impedance of the generator is automatically matched to the load, which ensures maximum signal power in a wide resistance range (0.5 ... 1000 Ω). This function makes LFG-50 suitable for use in adverse location conditions as well as enables effective tracing of very long cables. MULTI-FREQUENCY MODE The generator can output complex signals formed by adding a number of different frequencies together. Signals formed with adding two-frequencies allow a compatible signal receiver to determining a burial depth of an object during tracing.
