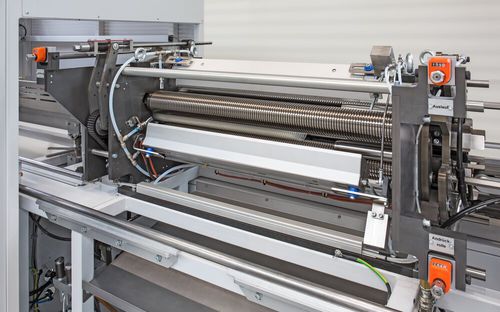

Flanging machine forming machine RIMROLLER

rollingcupfor plastics

The highly flexible RIMROLLER stands for absolute drinking pleasure from cups produced on the SPEEDFORMER KTR series. The RIMROLLER - also called "flanging station" - refines and perfects a round, smooth and secure rim of any cup. Benefits: The Rimroller ensures a robust, precise, simple and safe operation by: • one drive for all 3 screw drive shafts • 4 individually adjustable heating zones • rails for lift trucks • mobility of the safety housing and the format cassette for quick, easy & safe product changeover Technical Highlights: • Article diameter : 50 - 120 mm • Screw diameter : 76 mm (cup diameter 50 - 90 mm) 86 mm (cup diameter 70 - 120 mm) • Material : PET, PP • Performance : upt to 2,000 cups/min • Output max. : 1,000 articles/min (1-gear screw) 2,000 articles/min (2-gear screw)
