Tools up to φ6.35 are available.
The Triple Guard structure utilizing the centrifugal force to eliminate the chips delivers
a superior dust-proof performance.
Spanner driven chucking system provides sure tool holding.

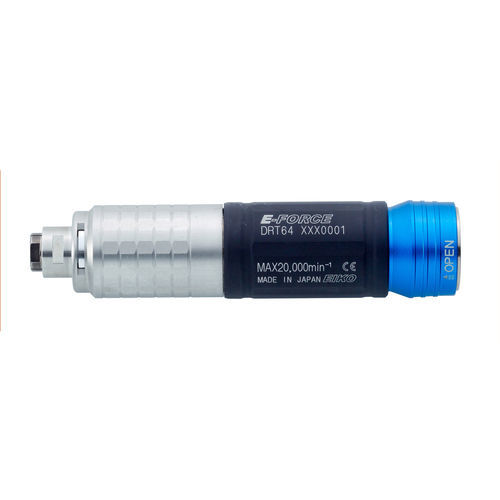

1,000~20,000 min Order Code 1027 Model D
★Recommended work
Drilling, chamfering, deburring, cutting
★Specifications
Maximum operating speed: 20,000min-1 Continuous operating speed: 20,000min-1 Mass: 141g
Compatible collet: φ2.34~φ6.35
Compatible motor: 20k motor
★Standard accessories
[spanner]
[Collet chuck] φ6
