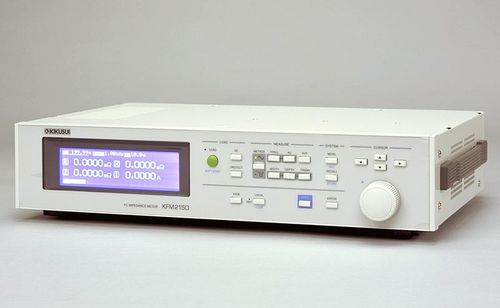

Impedance measuring instrument KFM2150

benchtop

Outline The KFM2150 system is a fuel cell impedance measurement system configured with an fuel cell impedance meter KFM2150 and an electronic load PLZ-4W series. Combination of KFM2150 and PLZ-4WA series (0V input type) supports impedance measurement for single cell of fuel cell. In addition to impedance measurement with AC impedance method, KFM2150 system provides IR measurement with current interrupt method. Application software enables test for each characteristic of fuel cell such as I-V characteristics, Constant Current characteristics, Current Interrupt method and Cole-Cole plot by the AC impedance method. Moreover, each test can be performed in a specified order. Features Capable of measuring impedance in the frequency range from 10 mHz to 20 kHz. Parallel operation by same model of PLZ-4W series enhances current capacity and power capacity. Power capacity: 1000 W, 200 A, load input terminal: 1.5 V to 150 V (KFM2150 system 1000-01) 660 W, 132 A, load input terminal: 0 V to 150 V (KFM2150 system 660-01A) Measuring AC current can be set from 0.1% to 10% (0.1% unit) of DC load current. Capable of IR measurement with the current interrupt method. Capable of varying DC load current while keeping measuring AC current setting (%). Equipped with low voltage protection External interface equipped as standard (RS232C, GPIB, USB)
