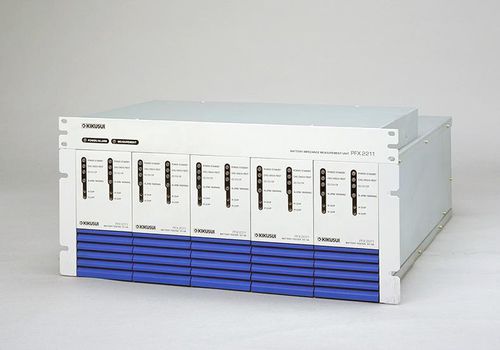

Voltage tester PFX2000 series

battery diagnostic

The PFX2000 Series are the battery test system developed on the basis of the experience and know-how that we have amassed through implementing numerous custom-built battery evaluation systems. The product adopts a unit structure that houses charging/discharging power supply units (PFX2011 or PFX2021) inside a unit frame (PFX2332). This enables you to build your battery test system in varying scale, from a small-size system with a single cell to a large-size system consisting of up to 120 units (max. 240 channels when all the units are PFX2011), making it possible to support any number of channels necessary for the test. Also, PFX2000 offers high availability by allowing you to replace only the unit that needs maintenance and to continue the test without stopping the entire system (hot plug feature). Each channel is completely independent of one another and thus can be controlled under different test and timing conditions. In addition, a rich set of protection features (OVP, UVP, OHP, etc.) is supported to prevent the test material from being destroyed by a system malfunction or operation mistake. Features CC pulse discharging mode intended for load patterns of cellular phones and other devices CP pulse discharging mode intended for load patterns of digital cameras and notebook PCs (PFX2021) Temperature measurement function Synchronized operation with thermostatic chamber Equipped with a V/F converter that ensures more accurate current measurement at pulse discharge (PFX2021). Power regeneration function (PFX2021)
