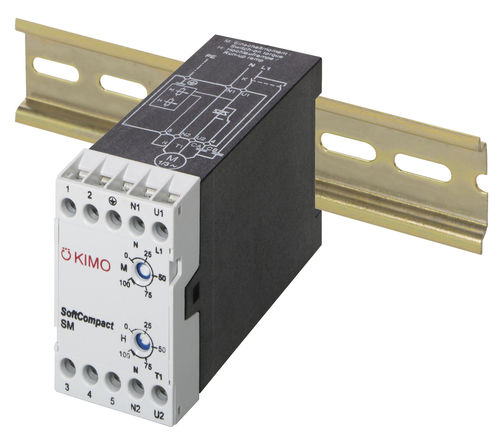

Motor soft starter 1.1 - 7.5 kW | SoftCompact® series

electronic

Mechanical ¨ Low adjustable starting torque ¨ Reduced cost of drive components Conveyor belts ¨ Falling over, banging or slipping of products, parcels etc. is eliminated Electrical ¨ Reduced starting current (with SM, SM2X, SM2 only) Applications ¨ Conveyor belts ¨ Packing equipment ¨ Long-travel drives for cranes ¨ Compressors ¨ Heat pumps ¨ Vibration transporters ¨ Machines with gearbox, belt or chain drives ¨ Special version for pole-change motors Features Switch-on torque and run-up voltage ramp separately adjustable. ¨ Module housing for mounting on 35 mm DIN rails. Very compact version with the width of a standard contactor (45 mm or 90 mm with SM2X) ¨ Terminals and potentiometers are well protected against accidental contact ¨ Easily retrofitted ¨ Can be used as a combined soft-start and injection brake using the electronic brake modules LEKTROMIK B1
