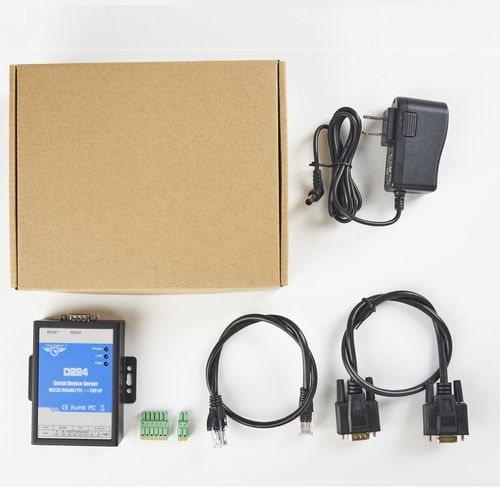

Serial device server D224

EthernetModbusRJ45

Serial Device Server (RS485/232/TTL to TCP/IP Converter) Model no：D224 The D224 Serial Device Server provides a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. It is the most popular industrial internet of things (IIOT) gateway.it can be used as a converter and repeater for two serial device communication directly, e.g.: PLC to PLC. 1.Wide working voltage, support 9-36V DC power supply, interface is DC Q2.1 jack and terminal block, and with anti-reverse protection design; 2. Built-in industrial grade ARM® CortexTM core, high performance, stable and reliable; 3.Support 1 channel RS-232, 1 channel RS-485 and 1 channel TTL; 4.Serial port baud rate supports 4800bps-128000 bps,supports None, Odd, Even check mode; 5.Supports 1 channel RJ45 Ethernet port, with link and data indicator, built-in isolation transformer, up to 2KV electromagnetic isolation; 6. Metal shell, protection class IP30, suitable for industrial control applications; 7.The configuration software supports WIN XP, WIN 7, WIN 8 and WIN 10, friendly interface; 8. Support static IP address or DHCP to obtain IP address automatically, and query the devices in the network through UDP broadcast protocol; 9. Support custom device names for easy user identification; 10. Support server domain name or IP address; 11.Built-in TCP/IP protocol stack, support transparent transmission and Modbus RTU to Modbus TCP Protocol; 12.Supports multiple working modes:TCP Server, TCP Client, UDP Server, and UDP Client; 13. Supports up to 5 TCP/UDP Clients and 5 TCP/UDP Servers connections simultaneously;
