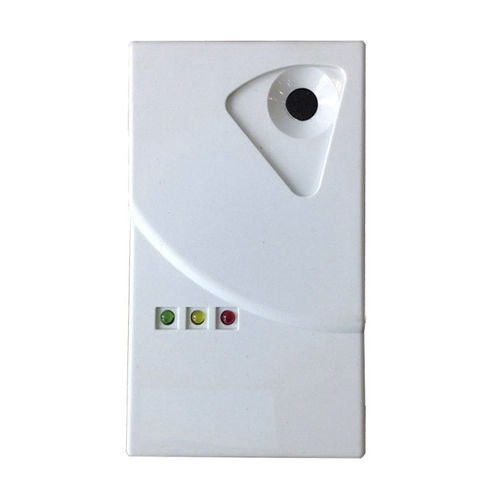

Intrusion detector GB-02

shock

The Glass Beak and Shock Detector GB-02 is special for detecting glass breaking frequency or shock frequency on the glass windows, glass wall, and other protected objects. The Shock and or breakage selectable by user. it can analyzes two frequencies by unique signal analysis ignores environmental disturbances. if detected glass breaking frequency or shock, it will output an alarm signal. It is high reliability, low-power consumption, high stability digital detector. The Glass Beak and Shock Detector GB-02 is used widely as a burglarproof, intrusion applications and so on. It can be ceiling or wall amount, Sensitivity is adjustable. Specifications : Ø Rated voltage:5VDC; Ø Power Input:9-16 VDC Ø Current Consumption: Standby is 21mA at 12VDC; Alarm is 26mA at 12VDC Ø Detection Range:10 m (33ft) Ø Dimensions 93mm x 55mm x 24mm (3.6" x 2.2" x 0.9") Ø Mounting type: Ceiling or wall Ø Alarm Output Relay: N.C. type 50mA 24VDC, with 10ohm in line resistor Ø Tamper Switch: N.C. type 50mA 24VDC,with 10ohm in line resistor Ø Operating Temperature Range -20°C to 50°C,(-4°F to 122°F) Ø Humidity: 95% maximum relative humidity (non condensed) Ø Storage Temperature Range:-30°C to 70°C(-22°F to 158°C) Ø Sensor Electrolet : condenser microphone Ø RFI protection: > or = V/M between 10 to 1000 MHZ Ø EMI immunity:up to 50,000 V of electrical interference from lightning or power surges
