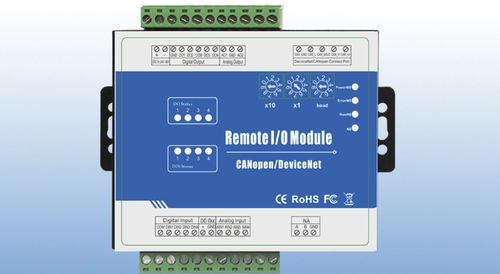

Digital I/O module M120d

analogDeviceNet4 digital inputs

The M120d DeviceNet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, provides a CANBus interface. It provides multi I/O, supports standard DeviceNet Protocol, can be intergraded into SCADA, OPC server, HMI and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system. The M120d DeviceNet Remote I/O Module provides 4 optical-isolated digital inputs,DI1 supports max. 1MHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital outputs, DO1 supports 10Hz~300KHz PWM high speed pulse output, or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure its reliable. Features : • Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog; • Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection; • 1 CANBUS Interface, comply with DeviceNet specification Volume I, Release 2.0 & Volume II, Release 2.0, Errata 5;  • Group 2 Only Server (non UCMM-capable) ; • Support Predefined Master/Slave Connection Set; • Support DeviceNet heartbeat and shutdown messages; •Provide EDS file for standard DeviceNet master interface; • 4 optical isolated digital input, supports max. 1MHz high speed pulse counter;
