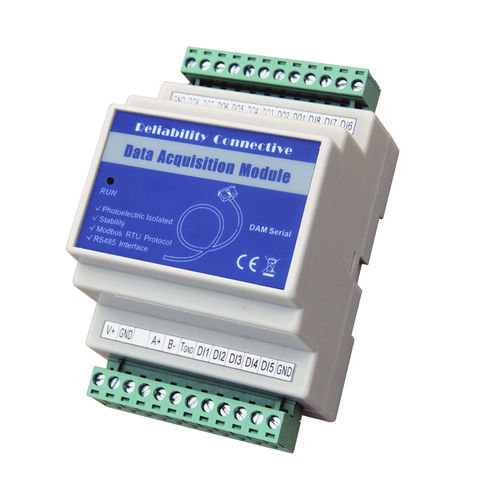

Digital output module DAM144

Modbus RTUTTLRS485

The DAM144 is for controlling 24 triode drivable digital output(50V/100mA,can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC. The DAM144 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. The DAM144 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module. The DAM144 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields. Mainly Features : Ø 24 drivable digital output(triode, not relay,50V/100mA), can be setup as TTL output or Pulse output(impulse width 0.1~20S); Ø Wide range power supply with reverse polarity connection protection; Ø Modbus RTU Protocol; Ø ESD Protection circuit for RS485 serial port; Ø Using industrial-grade chips; Ø Built-in watchdog ensure it reliability; Ø Lightning protection ensure it stability; Ø LEDs for status indication makes it easy to program in filed. Rated Power Input 10~30VDC(Peak Voltage must≤40V) Power Consumption Typically ≤3W Communication Protocol Modbus RTU Modbus Address 1~247 Data Format n,8,1; e,8,1; o,8,1 or n,8,2 Communication Interface RS485 Baud Rate 1200, 2400, 4800, 9600, 19200, 38400Bps Drivable Output 16 drivable digital output(triode, not relay, 50V/100mA) Isolated Type Power / RS485 Serial port/drivable output use the same GND, no isolated. Withstand Tests Output /Shell: 2000VAC/min.; 500VDC>100 MΩ Installation Type 35mm DIN Rail Operation Temperature -20~70℃;
