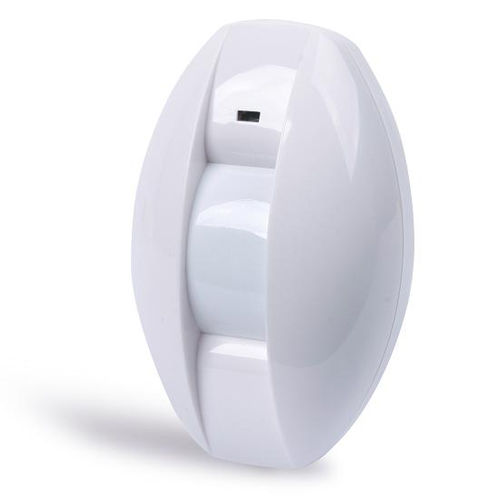

Passive infrared motion sensor CPIR-01

The wired Curtain PIR Motion detector is an INPUT DEVICE, The CPIR-01 PIR motion detector is designed to provide detection of criminal intrusion through door frames and window frames into a protected area by sensing infrared energy (heat) emitting from an intruder’s body moving through a protected area. The MOTION SENSOR is commonly referred to as a PIR, which stands for passive Infrared. Upon detection of intrusion, the CPIR-01 automatically generates an alarm signal to control panel. The sensor also provides a tamper contact output. The unit is RF and EMI Immunity to interferences produced by radio device. The unit is can be wall-mounted or Ceiling mounted by means of a bracket. Product Features Ø Newly-developed dual element passive infrared sensor unit; Ø Wired transmitting digital signal to control panel; Ø Intelligent logic control, eliminate false alarm; Ø Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection; Ø Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust; Ø Selectable detection sensitivity (standard/high) for different environmental requirements; Ø SMT adopted, RF and EMI Immunity; Ø Low power consumption; Ø Adjustable detecting distance; Ø Alarm output contacts of relay: N.C./ N.O. optional.
