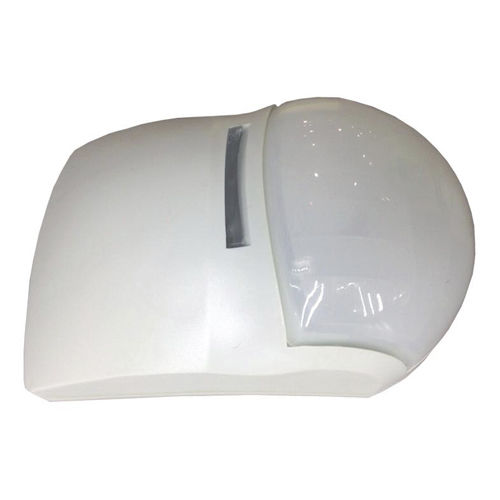

Motion detector SPR-600

LEDPIRdigital

The PIR Motion Detector SPR-600 is special for detecting human movement indoor, if detected the human movement, it will output an alarm signal. It is high reliability, low-power consumption, high stability digital detector. The PIR Motion Detector SPR-600 is used widely as a burglarproof, intrusion applications and so on. It can be wall amount, Sensitivity is adjustable. Specifications : Ø ASIC Chip Design (2nd Generation) Ø Extra Large/Long Range LED Ø Long Range Dual Element Pyro Ø Hard Type Full Pattern Spherical Lens Ø Adjustment Free Mounting Ø Diffractive Look Down Zone Ø Automatic Temperature Compensation Ø Perfect Fit™ Case & Optical Seal Ø Detection Range Adjustment Ø Adapts To Environment Ø Memory & Tamper Terminals Ø Rodent & Environmental Immunity Ø Detection Method: Dual Element PIR Ø Sensitivity: 1.6°C at .6 m/sec (3°F at 2ft/sec) Ø Detection Speed:1 to 5 ft/sec (0.3 to 1.5 m/sec) Ø Power Input:7.8 to 16 VDC Ø Current Draw:Active / Standby: 9mAC Ø Automatic Temperature Compensation:Yes Ø Pulse Count:1,2 - 2 to 3 Automatic depending on speed spectrum analysis Ø Alarm Period:1.6 sec Ø Alarm Output:N.C 28 VDC 0.1A with 10 Ohm series protection resistor Ø Tamper Switch: N.C 28 VDC 0.1A with 10 Ohm series protection resistor Ø Warm Up Period:20 sec Ø LED Indicator:LED is blinking during warm up period and self testing Ø LED ON during alarm Ø Temperature Range:-4°F to +140°F (-20°C to +60°C) Ø RFI Protection: 30V/m 10-1000 MHz Ø EMI Protection: 50,000 V of electrical interference from lightning or power through
