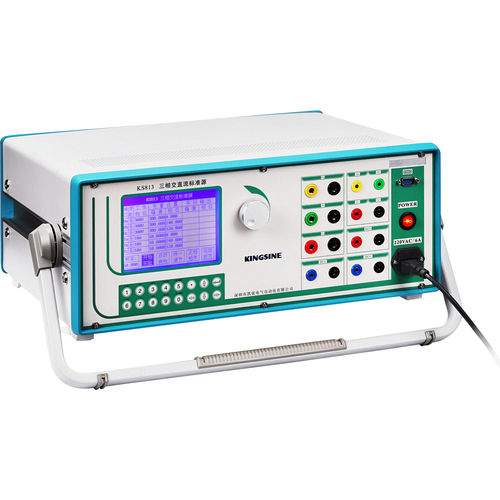

Multifunction calibrator KS813

powerenergypower meter

KS813 Three-phase AC/DC/Harmonic Standard Source (0.05 class) Item No.: 202002 Open protocol for software self-programming. AC voltage sources: 3x900V@3x25VA, accuracy 0.05% AC current sources: 3x30A@3x25VA, accuracy 0.05% 3-phase Harmonic Standard Power: 2-31x orders with 0.1 % accuracy DC voltage sources: 825V@20W max, accuracy 0.05% DC current sources: 30A@25W max, accuracy 0.05% 3-years guarantee of free repair, and life-long maintenance, Free software update and training Basic Functions ● - Applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc. ● - Apply to the power sector, measurement department, quality inspection departments, research institutions, universities, etc. ● - Applies to other production and research & development enterprise of energy meter, power distribution terminals, power management, load control, power quality, and medium voltage reactive power compensation. ● - Open communications protocol to facilitate the secondary development for RTU / FTU / Power Management Terminal / Public variable measuring the terminal factory automatic verification. ● - Calibrating a variety Analog Digital meter of direct U/I instruments & frequency with DC/AC 0.05% accuracy and the corresponding class digital multimeter for quality inspection, measurement and instrumentation maintenance, parts detection
